High Durability 48V 150A Forklift Battery Charger Three Phase High Frequency

Brand Name : LAKER

Model Number : ESCH

Certification : CE

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500000pcs per month Contact Now

Delivery Time : 7 to 15days after order confirmation and deposit

Packaging Details : Cartons, Standard wooden pallet

Mode : ESCH48V/150A

Technolog : Single Chip Microcomputer (SCM)

Dimension : 386*169*360mm

Max Efficiency : 97%

Contact Now

Using advanced three-phase high-frequency technology, the charging efficiency of this charger is greatly improved compared to traditional chargers. The ultra-large current output of 150A can quickly charge large-capacity forklift batteries, significantly shorten the charging time, and reduce the loss of production efficiency caused by equipment downtime. At the same time, it is also equipped with a complete multi-protection function, including over-current protection, over-voltage protection, short-circuit protection, etc., to fully guarantee the safety and reliability of the charging process. Even in high-intensity, long-term use environments, it can operate stably.

Model ESCH48V/65A
Dimensions (mm) Long * wide * high: 386*169*360 (mm)
Output maximum current (A) 150
Maximum power point (W) 7200
Input voltage (VAC) 380V±15% Three phase three wire +safe ground wire
Output voltage (VDC) Lead-acid battery:63V; VRLA:60V;(Customizable)
Applicable battery voltage 48V lead-acid battery pack, (Customizable, Lithium battery optional)
Maximum efficiency 97%
Output voltage regulation precision ±1%
Output current accuracy ±1%
Working temperature -30℃～-45℃
Classes of seismic measure SAEJ1378
Cooling mode Airblast cooling
Over-temperature protection 75℃±5
Input under-voltage protection (VAC) <284~304
Output over-voltage protection (VDC) 65V±1
Output over-current protection (A) >110%*Maximum charge current
Output short circuit protection When the output is short-circuited, charger shutdown and automatic recovery after short-circuiting is solved.
Battery reverse protection Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly.

Product Specification

  • Charger integrates active power factor correction(PFC), can achieve zero pollution of the power grid and avoid the impact of large current grid；
  • Wide range of AC input voltage, strong adaptability；
  • The module has the perfect protection function such as input over-voltage, lack of input, output over current, over voltage output, output short circuit, output isolation protection, module overheating and so on；
  • The full-bridge phase-shifted soft switch PWM the latest mixed-mode control, to overcome the traditional phase-shifted full-bridge circuit circulation loss, working conditions of diode side faults, secondary-side diodes to achieve soft recovery, the module can achieve high efficiency over a wide input voltage range and the maximum load range. Efficiency;
  • Close to 97%, the electromagnetic interference is greatly reduced, and the volume weight is greatly reduced;
  • Improved thermal design, more uniform heat distribution;
  • The use of a more complete circuit board dust, moisture-proof treatment;
  • (high-frequency battery charger, high power battery charger)

Product Strength

  • Long life expectancy and proven in service record
  • Designed for use in harsh conditions
  • Smart modular design for simple and cost-effective
  • Highest efficiency, up to 97%
  • Fast and simple installation, plug and play
  • Cost-effective spare parts philosophy
  • Large range of chargers to match your application and optimize efficiencyHigh Durability 48V 150A Forklift Battery Charger Three Phase High FrequencyHigh Durability 48V 150A Forklift Battery Charger Three Phase High Frequency


Product Tags:

High Frequency Forklift Battery Charger



Three Phase Forklift Battery Charger



150A Forklift Battery Charger


Wholesale High Durability 48V 150A Forklift Battery Charger Three Phase High Frequency from china suppliers

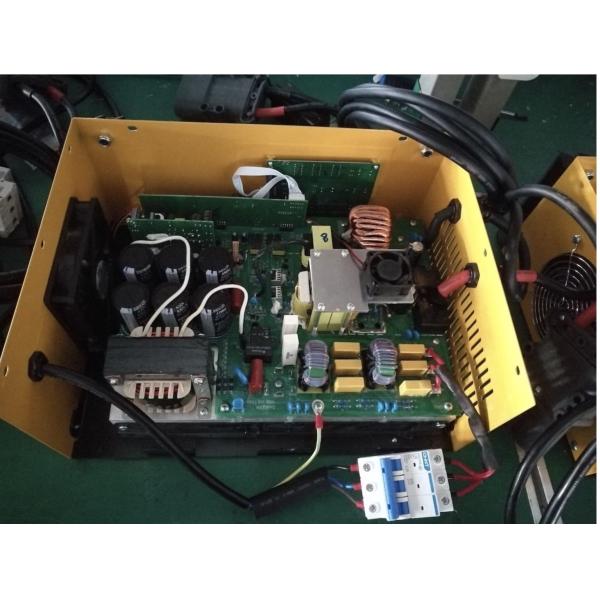

High Durability 48V 150A Forklift Battery Charger Three Phase High Frequency Images
